Sim-to-Real Learning for Legged Locomotion

Xu Yang

Department of Automation, Tsinghua University

Table of Contents


Introduction

  • Reward function.
    How to design reward functions to obtain expected controller performance?
  • Input and output.
    What can you measure and what can you control?
  • Modelling.
    simuation fidelity (rigid-body dynamics and actuator dynamics); dynamics randomization
  • Training.
    parallel differentiable simulation; curriculum; teacher and student
  • Learning algorithm.
    PPO etc.
  • Network design.

Qradruped Robot: Traditional Controller Design

  • Goal: valid gait patterns (contact sequences) and commanded velocity tracking.
  • Controller: planning and tracking.
  • Trajectory optimization for a complex rigid-body model with many unspecified contact points is beyond the capabilities of current optimization techniques. Approximations are needed to reduce complexity.
    • Rigid-body model: point mass, whole body...
    • Contact points: smooth contact dynamics...

Anymal: Learning Motor Skills[Hwangbo2019]

  • Goal: commanded velocity tracking and recovery from a fall.
  • Modelling[Raisim]: rigid-body dynamics algorithms $O(n)$ + collision-detection library $O(n^2)$ + contact solver ($O(n)$ if not coupled) + actuator dynamics
  • Challenge: motors (SEAs) are hard to model.

Anymal: Control and State Estimation of Motors

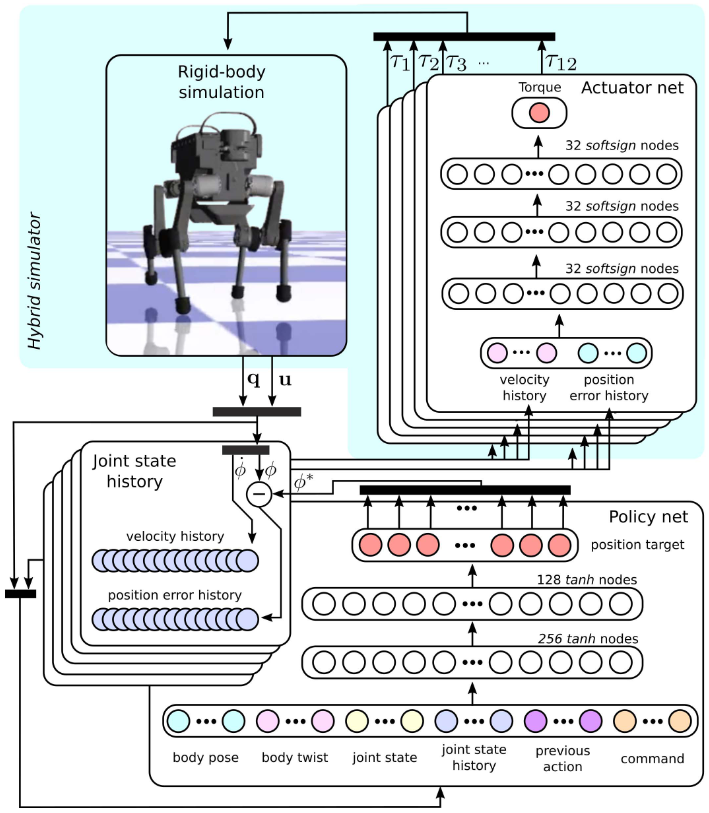

  • Actuator network:
    • input: joint state history (including joint velocity and joint position error), which consists of the current state and 2 past states that correspond to $t-0.01$ and $t-0.02$ s.
    • the length of the history should be sufficiently longer than the sum of all communication delays and the mechanical responce time.
    • output: joint torque
    • architecture: an MLP with 3 hidden layers of 32 units each; softsign activation function (12.2 $\mu$s) instead of tanh (31.6$\mu$s).
  • Dataset: the excitation must cover a wide range of frequency spectra.
    • Foot trajectories in the form of a sine wavewith varied amplitude (5 to 10 cm) and frequency (1 to 25 Hz).
    • Constant contact with the ground.
    • The robot is disturbed manually.

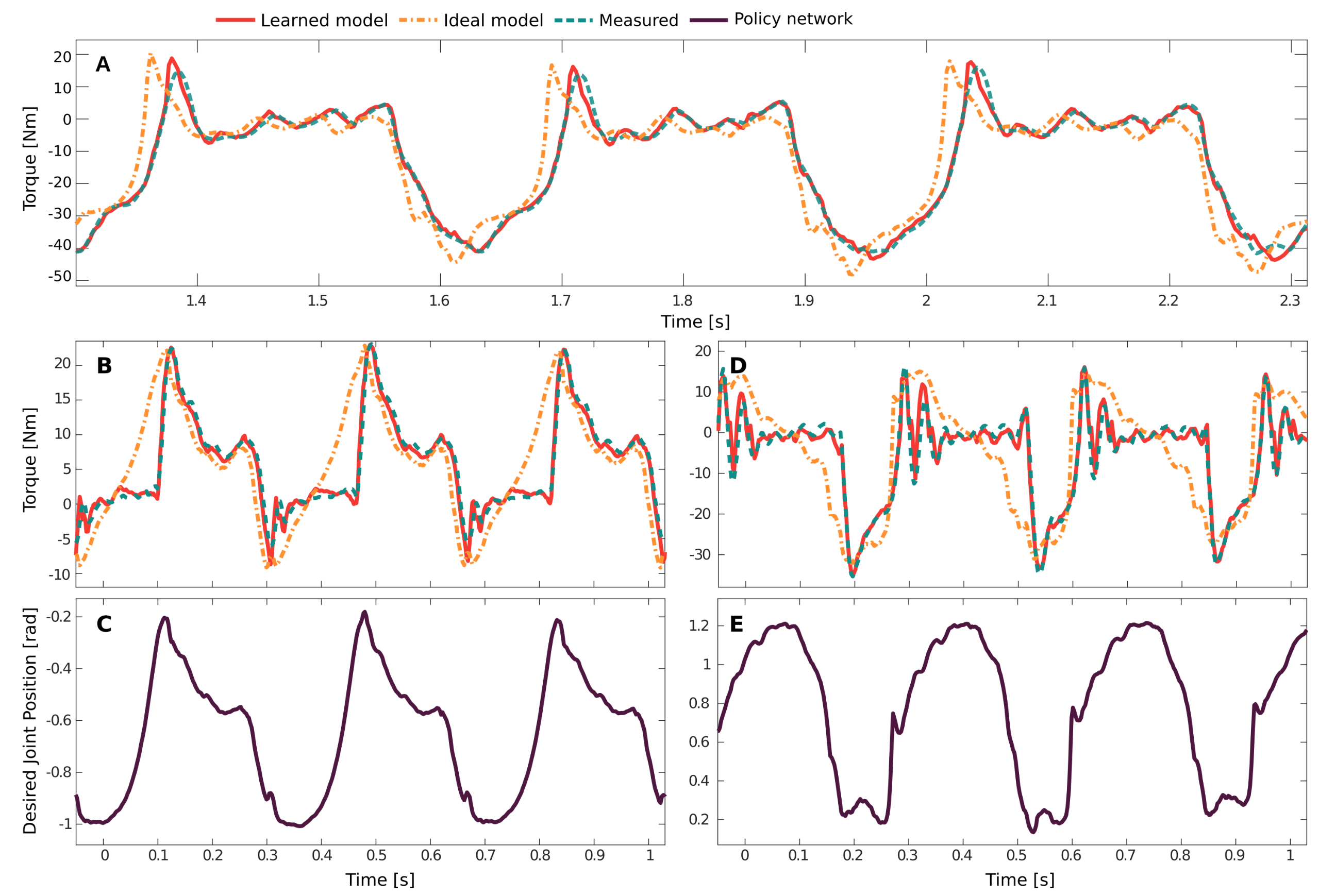

Anymal: Control and State Estimation of Motors

Anymal: Policy

  • Hyrbid simulator:
    • nearly 50 000 time steps per second (half of the run time is used to evaluate the actuator nets)
  • Policy network:
    • input: $(o_k=<\Phi^g, r_z, v, \omega, \Phi, \dot\Phi, \Theta, a_{k-1}, C>)$
      • Body twists $\Phi^g$ (direction of the gravity vector in the IMU frame);
      • height, linear and angular veclocities of the base; joint angles, velocities;
      • joint state history $\Theta$ sparsely sampled at $t_k-0.01$ s to $t_k-0.002$ s; (enabling contact detection, which could be replaced by force sensors)
      • previous action; command $C$.
    • output: joint position target (why not torques or velocities?)
    • architecture: an MLP with two hidden layers, with 256 and 128 units each and tanh nonlinearity (bounded activation functions yield less aggressive trajectories for real robots when subjected disturbances)

Learning Locomotion Skills: Does the Choice of Action Space Matter?[Peng2017]

  • Reward: a weighted sum of terms ($r_{pos},r_{vel}, r_{end},r_{root},r_{com}$) that encourge the policy to track a reference motion
  • Actuation model:
    • target joint angles with given $k_p$ and $k_d$;
    • target joint velocities with given $k_d$;
    • torques;
    • muscle activations.

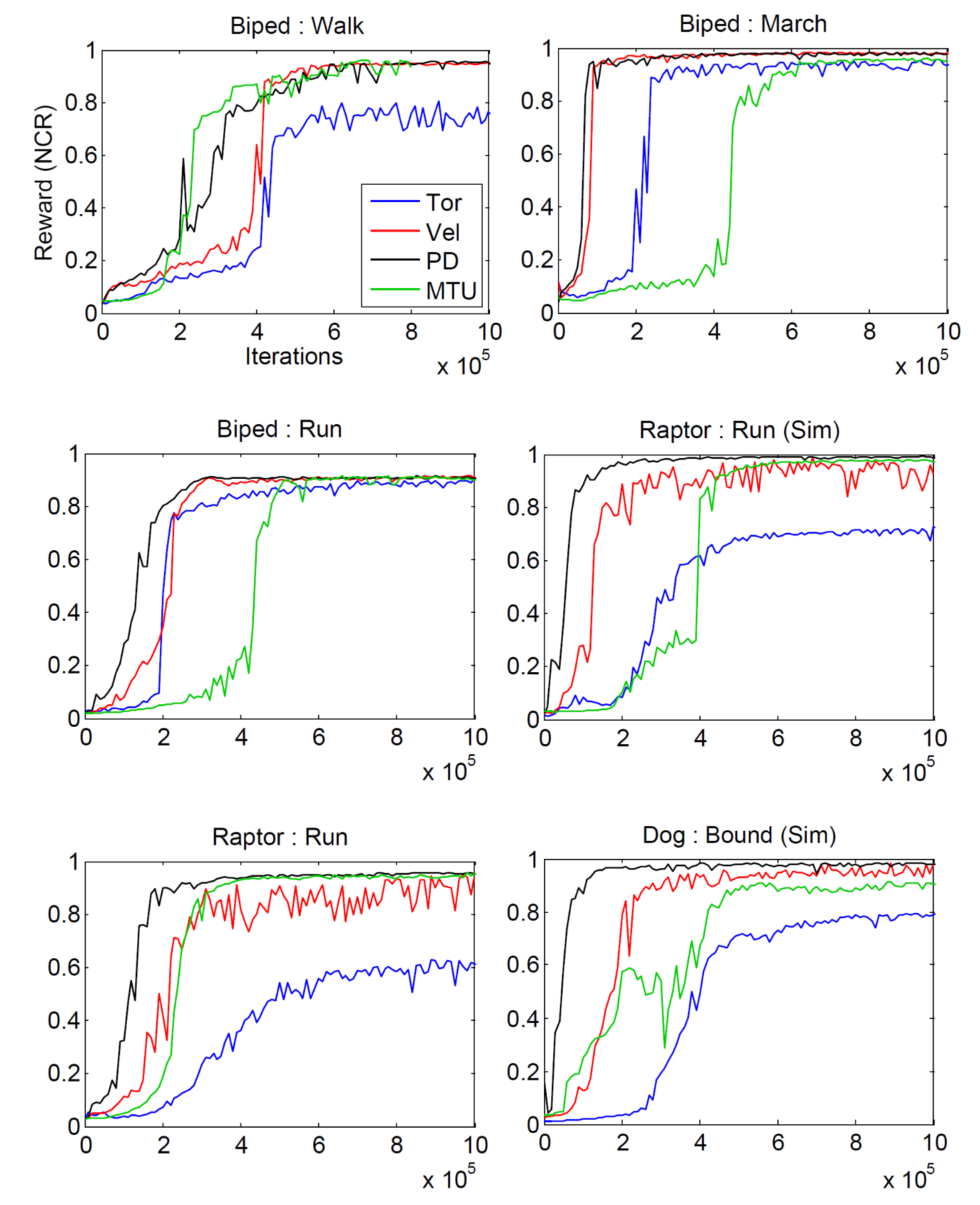

  • A PD controller can outperform a torque controller in both training speed and final control performance.
  • Explanation:
    • Smoother learning curve.
    • A PD controller starts as a standing controller while a torque controller doesn't.

Anymal: Training

  • Learning algorithm: Trust Region Policy Optimization.
  • Curriculum: avoid trapping in a local minimum of penalty on joint torque and velocity
    • all of cost terms except those related to the objective (base velocity error cost etc.) are multiplied by a curriculum factor $k_c$, where $k_{c, j+1}\leftarrow (k_{c, j})^{k_d}$ and $k_0, k_d\in (0, 1)$ are selected to prevent the initial tendency to stand still.
  • The discount factor $\gamma$ is hand-tuned.
  • Joint velocities, base velocities: uniformly distributed noise injection
  • Training time: 9 days of simulated time for command-conditioned locomotion; 79 days for recovery from a fall.

Anymal: Reward Setting

  • angular velocity and linear velocity of the base cost $$ c_wK(|\omega_{IB}^I-\hat\omega_{IB}^I|), c_w=-6\Delta t $$
  • torque cost, joint speed cost $$ k_cc_\tau\|\tau\|^2, c_\tau=0.005\Delta t $$
  • foot clearance cost and foot slip cost
  • orientation cost
  • smoothness cost $$ k_cc_s\|\tau_{t-1}-\tau_t\|^2 $$
  • $K:\mathbb{R}\rightarrow [-0.25, 0)$ $$ K(x)=-\frac{1}{e^x+e^{-x}+2} $$

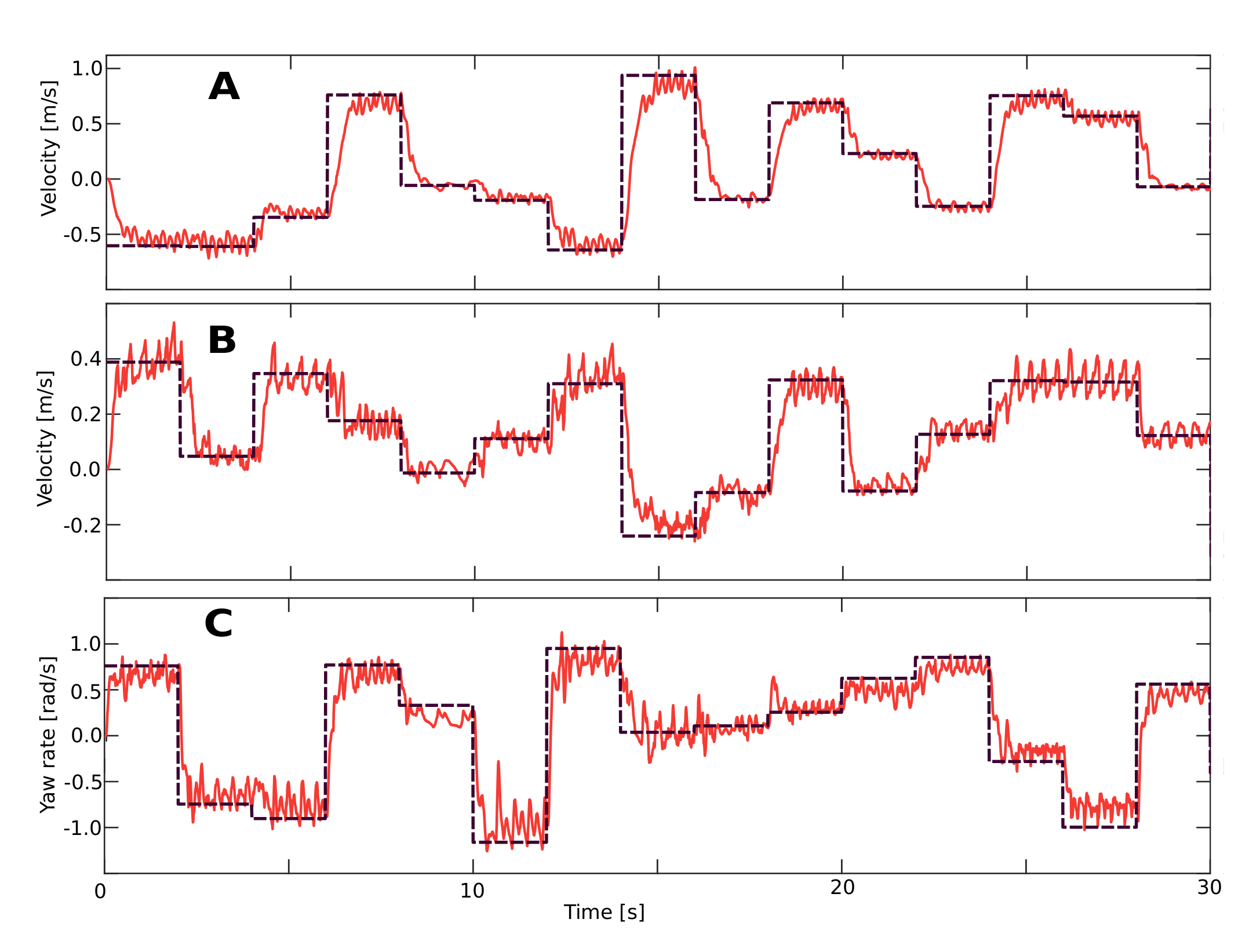

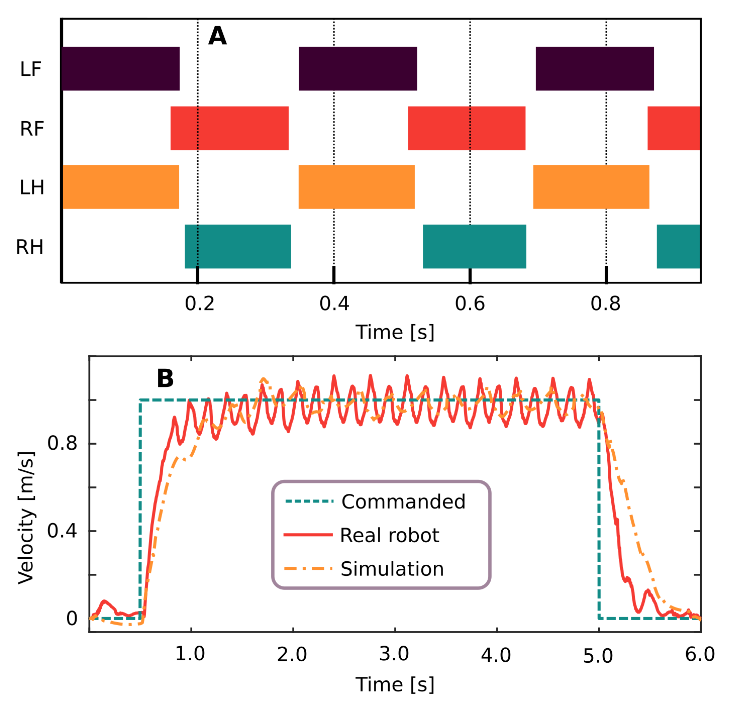

Anymal: Deployment

  • Inference takes 25$\mu$s on a single CPU thread (Intel i7-5600U, 2.6–3.2GHz, dual-core 64-bit, Tensorflow C++ API is used), less than 0.25% of the available onboard computational resources.
  • The policy network is evaluated at 200Hz for command-conditioned locomotion and at 100 Hz for recovery from a fall.
  • The performance is insensative to the control rate: performance is identical for recovery when the control rate increases from 20 Hz to 100 Hz. (Possibly due to the low joint velocities mostly below 6 rad/s)

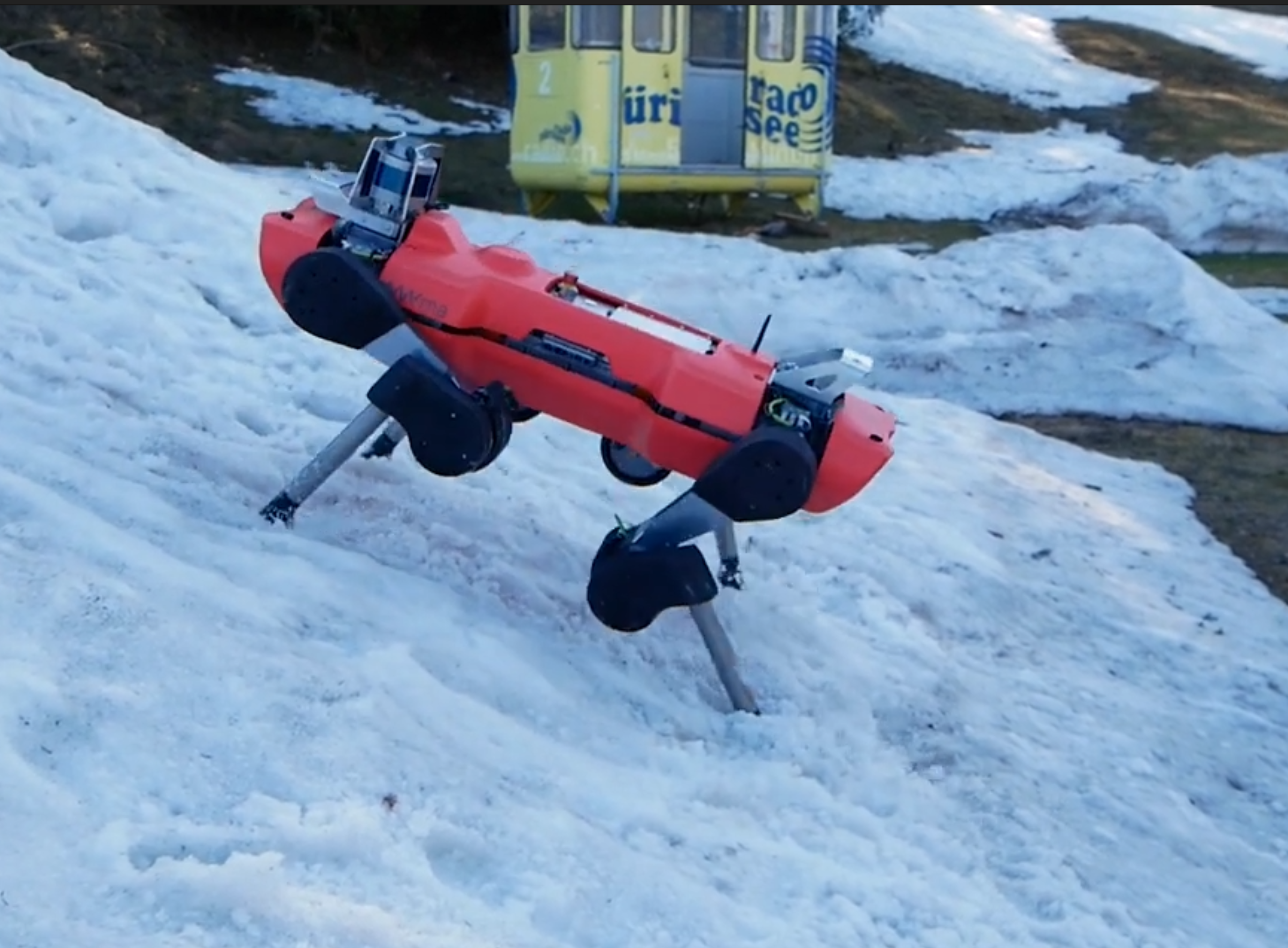

Anymal - Learning Locomotion over Challenging Terrain[Lee2020]

  • Goal: follow a command (direction) and locomote over rough terrain with only proprioceptive measurements (joint encoders and an IMU).
  • Challenge: the robustness of the controller.

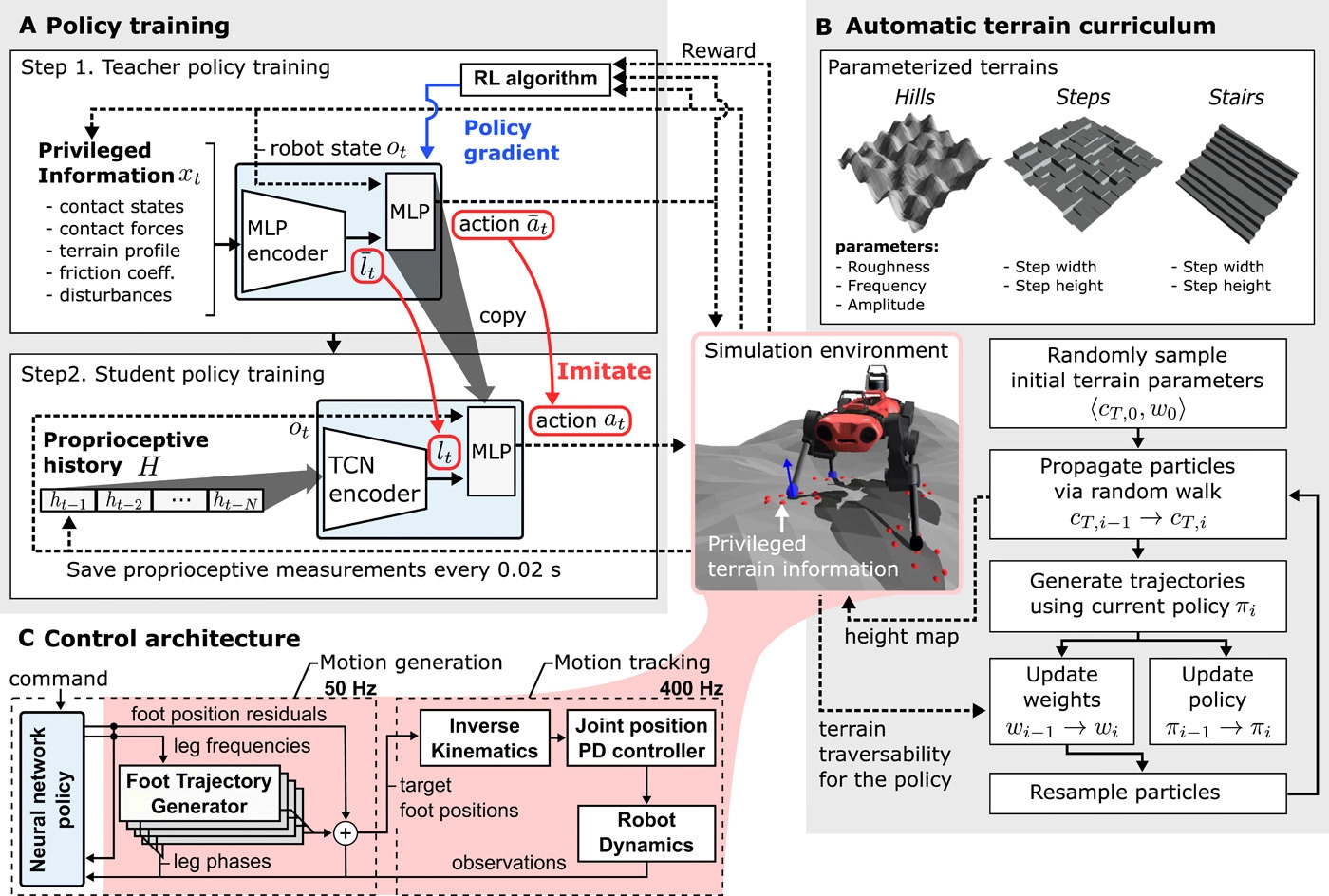

Anymal - Learning Locomotion over Challenging Terrain: Policy

  • Privileged learning
  • teacher policy (access to ground-truth knowledge)
    • state $s_t=(o_t, x_t)$
    • $o_t$ includes command, orientation, base twist, joint positions and velocities, periodic phase $\phi_i$, frequency offset $f_i$ of each leg, previous foot position targets, joint position errors and velocities at $t-0.01$ and $t-0.02$ s.
    • $x_t$ contains noiseless information from the physics engine, mainly related to foot-ground interactions, such as terrain profile (9 points placed along a 10-cm radius circle), foot contact state and forces, friction coefficients, external disturbance forces.

Anymal - Learning Locomotion over Challenging Terrain: Policy

  • Privileged learning
  • teacher policy (access to ground-truth knowledge)
    • action: 16-dim vector (leg frequencies $f_i$ and foot position residuals $\Delta r_{fi, T}$)
      • $\phi_i=\phi_{i,0}+(f_0+f_i)t$: contact phase if $\phi\in[0, \pi)$ and swing phase if $\phi\in[\pi, 2\pi)$, where $f_0=1.25$ Hz.
      • foot trajectory generator: $F(\phi):[0, 2\pi)\rightarrow \mathbb{R}^3$
      • target foot position $F(\phi_i)+\Delta r_{fi,T}$
      • tracking: analytic IK and PD controller
    • architecture: MLP encoder with input $x_t$ and MLP for computing action
    • Learning algorithm: TRPO

Anymal - Learning Locomotion over Challenging Terrain: Policy

  • Privileged learning
  • student policy (only uses sensors avaliable on the real robot; imitates the teacher)
    • state $s_t=(o_t)$
    • architecture: a temporal convolutional network (TCN) encoder and an MLP for computing action
    • Learning algorithm: supervised learning with a loss function $$ \begin{aligned} L=&{\color{var(--myred)}(\bar a_t(o_t, x_t)-a_t(o_t, H))^2}+\\ &{\color{var(--myblue)}(\bar l_t(o_t,x_t)-l_t(H))^2}, \end{aligned} $$ where $H=\{h_{t-1},\cdots,h_{t-N-1}\}$ and $h_t=o_t\setminus\{f_0, \textrm{joint history, previous foot position targets}\}$ is a time series of proprioceptive observations.

Anymal - Learning Locomotion over Challenging Terrain: Policy

  • Adaptive terrain curriculum
    • The terrain is generated by a vector $c_T$.
    • Evaluate by the traversability of generated terrains $$ \begin{aligned} &v(s_t, a_t, s_{t+1})=1, \textrm{if}\ v_{pr}(s_{t+1})>0.2,\\ &Tr(c_T,\pi)=\mathbb{E}_{\xi\sim\pi}\{v(s_t,a_t,s_{t+1}|c_T\}\in[0, 1],\\ &Td(c_T,\pi)\triangleq \textrm{Pr}(Tr(c_T,\pi)\in[0.5, 0.9]) \end{aligned} $$
    • Sequential importance resampling particle filter

Anymal - Learning Locomotion over Challenging Terrain: Policy

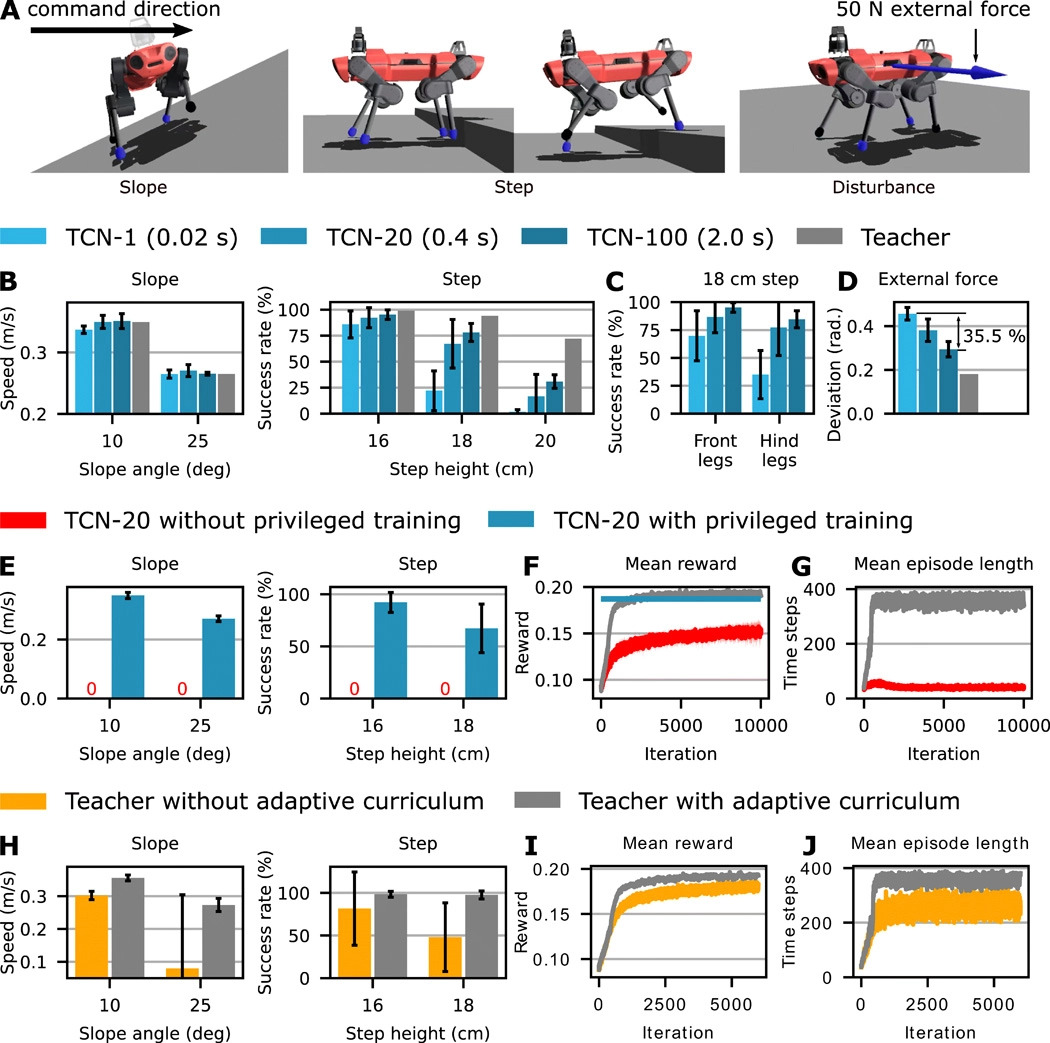

Anymal - Learning Locomotion over Challenging Terrain: Reward Setting and Training

  • Linear velocity; angular velocity; base motion; foot clearance; body collision; smoothness of target foot positions; torque penalty $$ 0.05r_{lv}+0.05r_{av}+0.04r_b+0.01r_{fc}+0.02r_{bc}+0.025r_s+2\cdot 10^{-5}r_\tau, $$
  • Training: 12 hours for teacher policy and 4 hours for student policy (i7-8700K CPU and RTX 2080 GPU)
  • Training environment features only rigid terrain, while the controller successfully meet the diversity of field conditions.

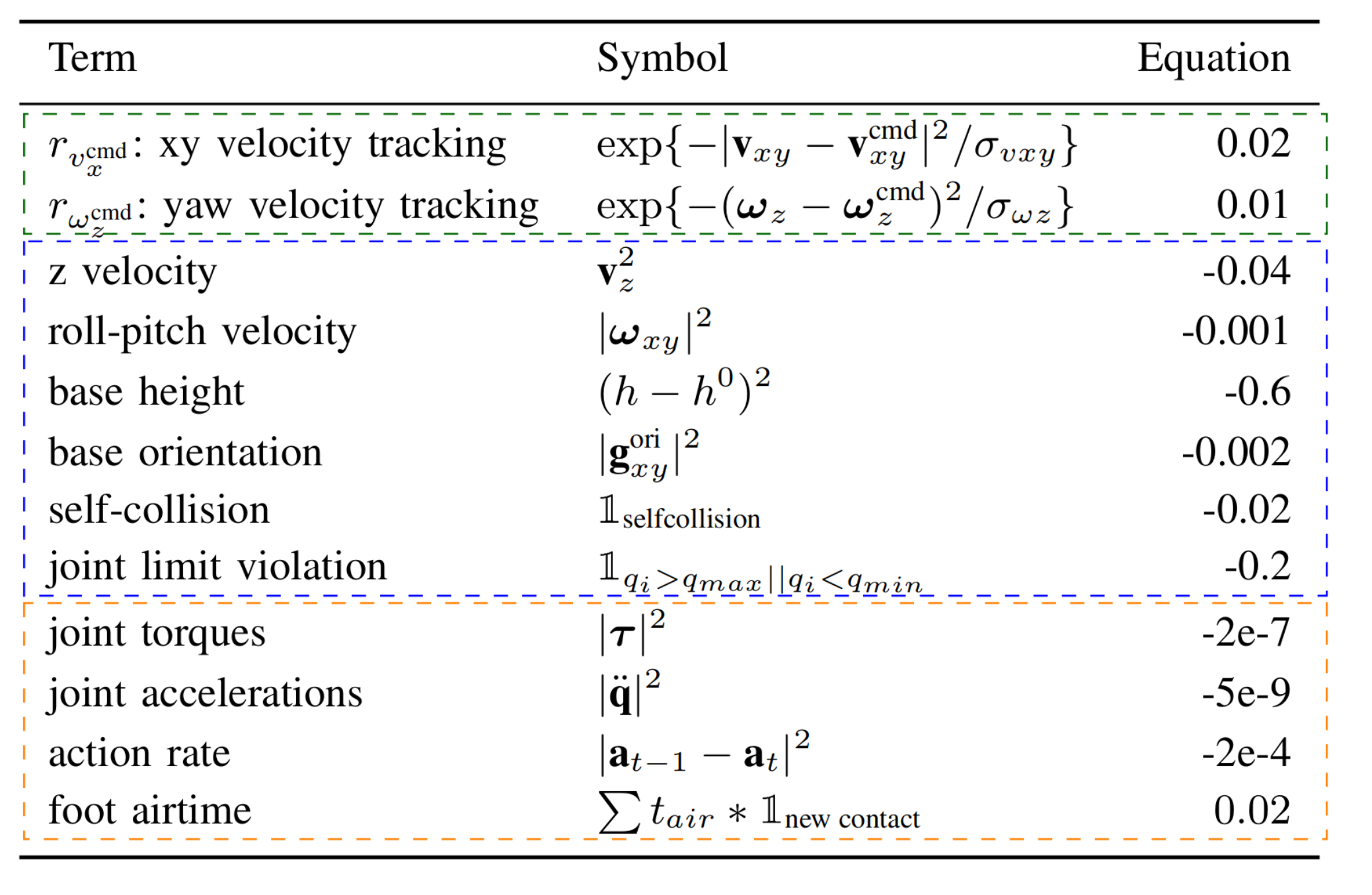

Mini Cheetah

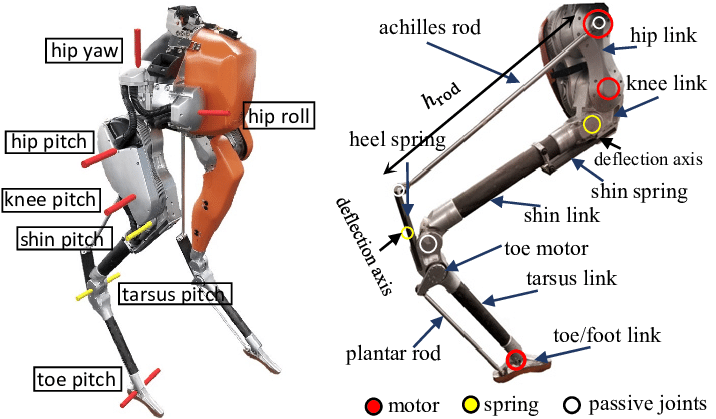

Cassie: Bipedal Gait Learning

  • Goal: learn all common gaits.
  • Challenge: the reward function is hard to design
    • track trajectory motion: deriving feasible reference trajectories is hard
    • reference-free reward: inefficient, infeasible or unsafe policies.

Cassie: Bipedal Gait Learning

  • Gait: a sequence of periodic swing phases and stance phases.
  • Bahavior reward: biased sum of $n$ reward components $$ \begin{aligned} R(s,\phi)&=\sum_i R_i(s, \phi)\\ R_i(s,\phi)&=c_i\cdot I_i(\phi)\cdot q_i(s), \end{aligned} $$ where $\phi\in[0, 1]$ denotes the cycle time; $I_i(\phi)$ is a binary-valued random variable denoting whether the target phase is active; $q_i(s)$ is the reward (e.g. norm of a foot force)
  • $$ P(I_i(\phi)=x)=\left\{ \begin{aligned} &P(A_i<\phi< B_i) \quad \textrm{if}\ x=1 \\ &1-P(A_i<\phi< B_i) \quad \textrm{if}\ x=0 \\ \end{aligned} \right. $$ where $A_i\sim \Phi(2\pi a_i,\kappa), B_i\sim\Phi(2\pi b_i,\kappa)$ and $\Phi$ is the Von Mises distribution (approximation of the wrapped Normal distribution).

Cassie: Bipedal Gait Learning

  • Reward coefficients: $$ \begin{aligned} \mathbb{E}[C_{frc}(\phi)]=&c_{swing\ frc}\cdot \mathbb{E}[I_{swing\ frc}(\phi)]+\\ &c_{stance\ frc}\cdot \mathbb{E}[I_{stance\ frc}(\phi)] \end{aligned} $$

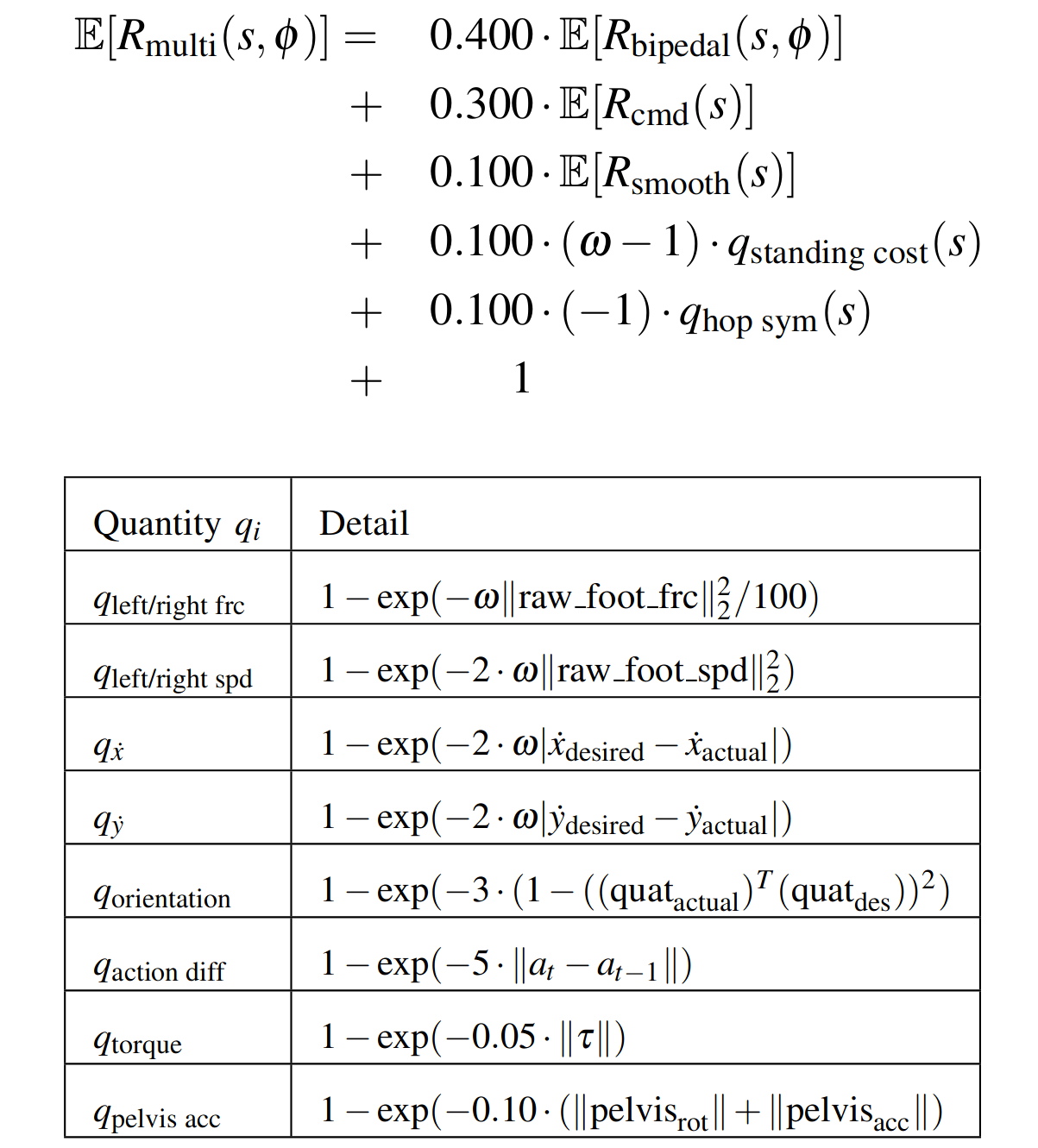

  • Reward: bipedal bahavior, smooth terms and penalization of control inputs $$ \mathbb{E}[R(s,\phi)]=\mathbb{E}[R_{bipedal}(s,\phi)]+R_{smooth}(s)+R_{cmd}(s) $$ $$ \begin{aligned} \mathbb{E}[R_{bipedal}(s,\phi)]&=\mathbb{E}[C_{frc}(\phi+\theta_{left})]\cdot q_{left\ frc}(s)+\cdots\\ &+\mathbb{E}[C_{spd}(\phi+\theta_{left})]\cdot q_{left\ spd}(s)+\cdots, \end{aligned} $$ where $\theta_{left}$ and $\theta_{right}$ define the phases.

Cassie: Bipedal Gait Learning

  • Keep the cycle offsets fixed and vary the phase ratio: transition from walking to running and hopping with more or less time in the air.
  • Vary both the cycle offsets and the phase ratio: introduce additional reward (behavior-specific transition penalities).
    • Hopping: commanded when cycle offsets are very close; cost for constraining the feet positions to be close $$ q_{hop\ sym}(s)=1-\exp(-err_{sym}\exp(-5|\sin(2\pi(\theta_{left}-\theta_{right})|)). $$
    • $$ q_{standing\ cost}(s)=1-\exp(-(err_{sym}+20q_{action\ diff}(s))). $$

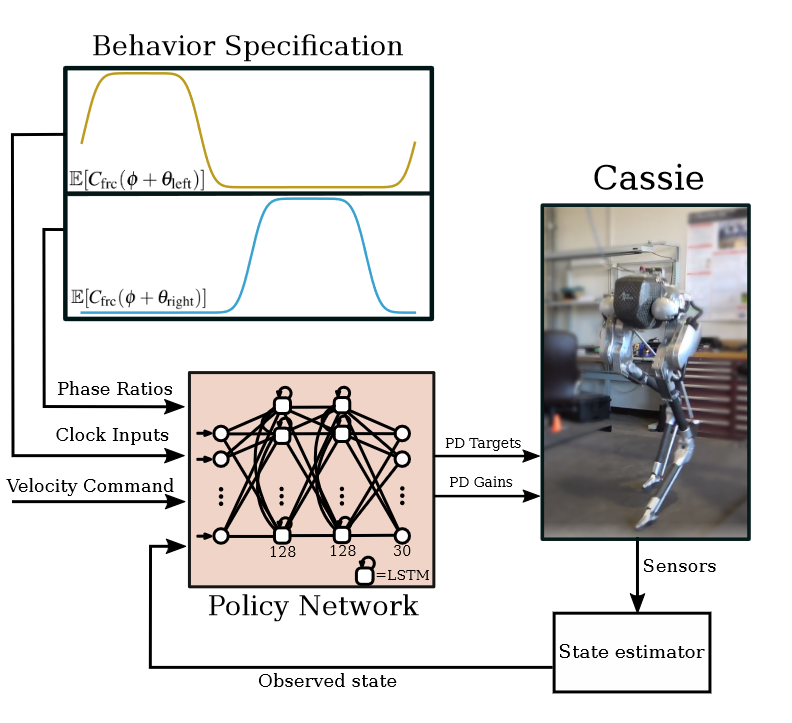

Cassie: Policy

  • Input:
    • robot state $\hat q, \hat{\dot q}$
    • desired velocity $\dot x_{desired}, \dot y_{desired}$
    • phase ratios and clock inputs $r, p=\{\sin(2\pi(\phi+\theta_{left})), \sin(2\pi(\phi+\theta_{right}))\}$
  • Output: 10 desired joint positions and 10 sets of PD gains
  • Architecture: LSTM with 2 recurrent hidden layers of size 128 each and a simple linear output projection of size 30.

Cassie: Training and Deployment

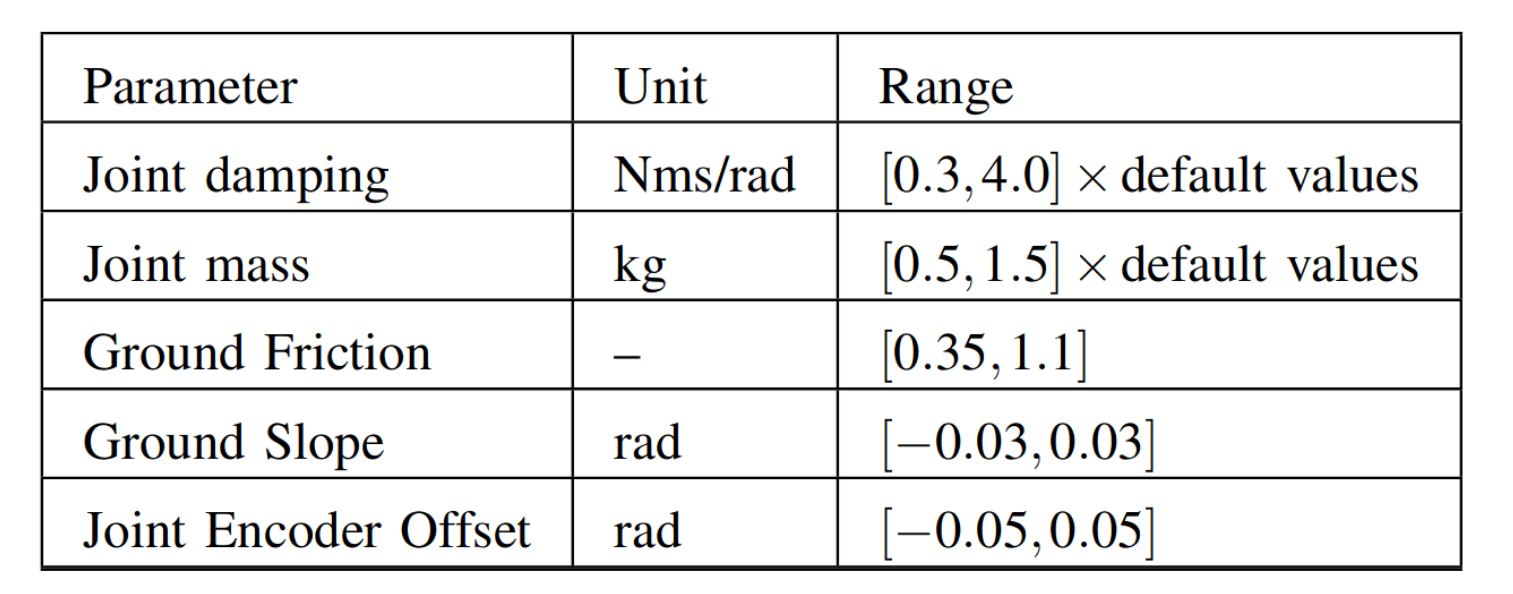

  • Dynamics randomization.
  • Learning algorithm: PPO
  • Simulator: cassie-mujoco-sim based on MuJoCo
  • Policy evaluation (40 Hz) and PD tracking (2000 Hz).

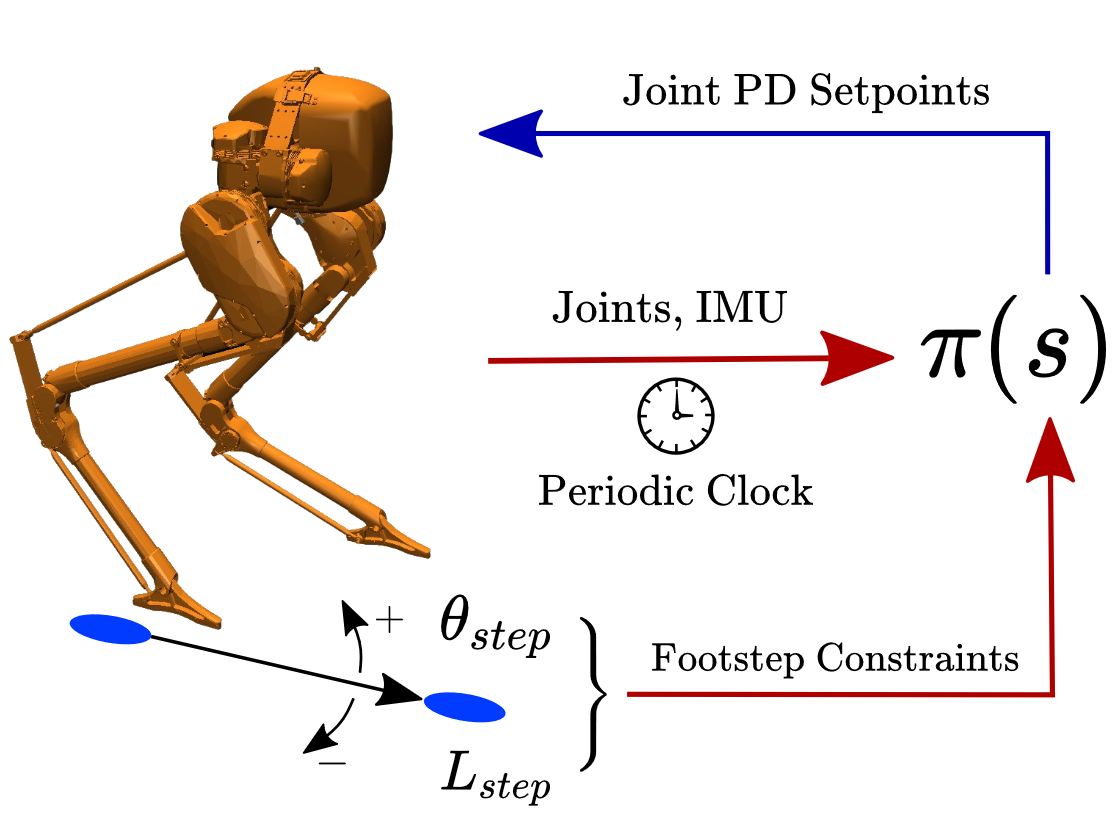

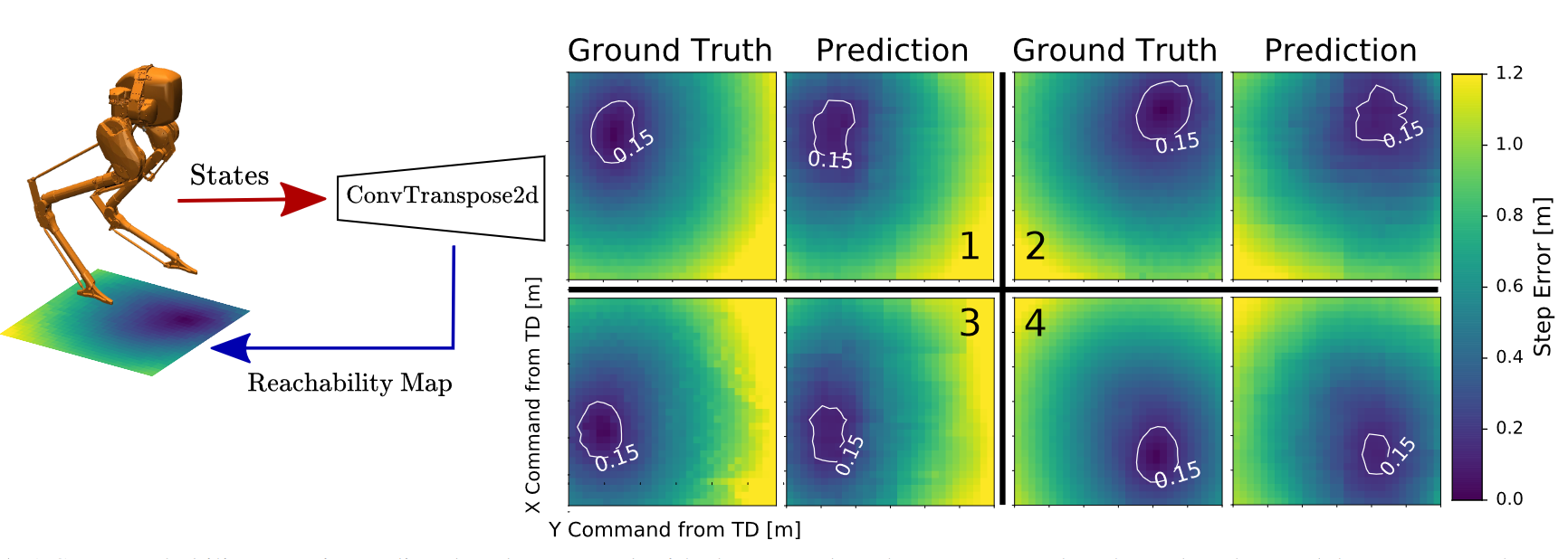

Cassie: Footstep-Constrained Walking - Policy

  • Input:
    • rotational velocity and orientation of the base; robot state $\hat q, \hat{\dot q}$
    • clock inputs $p=\{\sin(2\pi(\phi+\theta_{left})), \sin(2\pi(\phi+\theta_{right}))\}$
    • swing-to-stance ratio $r$ and turn rate input
    • desired footstep constraint $U=(L_{step}, \theta_{step})$
  • Output: 10 desired joint positions
  • Architecture: LSTM with 2 recurrent hidden layers of size 128 each and a simple linear output projection of size 30.

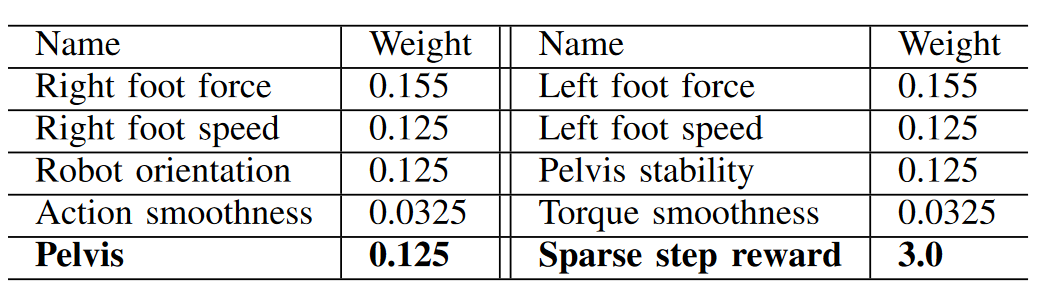

Cassie: Footstep-Constrained Walking - Reward

  • Reward at two time scales:
    • locomotion: at every decision circle $$ r_{pelvis}=100(\Delta d^i-\Delta d^{i-1}) $$
    • footstep-constraint: only at touchdown moment $$ r_{step}=\exp(-2f), $$ where $f$ is the Euclidean distance between the actual and target footstep locations.

CONCLUSION

  • Reward function.
    Characterization without loss of generality: exploitation of periodicity
  • Input and output.
    Task space or joint space; position, velocity or torque command?
  • Modelling.
    simuation fidelity (neural networks for motors); dynamics randomization; manual noise injection
  • Training.
    curriculum (naive version or adaptive version); teacher and student; parallel differentiable simulation [Rudin2021, Margolis2022]
  • Learning algorithm.
    PPO etc.
  • Network design.

Thanks!
